Stonhaus Design, a Stone Countertop Fabricator in Charleston, SC: CNC Waterjet Cutting, Slab Selection, and Turnkey Installation

High-end residential builds and complex architectural renovations across the South Carolina Lowcountry require interior stone finishes that combine structural longevity with flawless aesthetic continuity. From custom coastal residences on Kiawah and Sullivan’s Island to historical kitchen restorations in downtown Charleston and modern developments throughout Mount Pleasant, stone countertops function as both an everyday culinary workspace and an architectural centerpiece. However, transforming a multi-ton raw geological slab into a finished kitchen island, full-height backsplash, or waterfall gable requires exceptional precision. Sourcing stone from third-party brokers without in-house manufacturing infrastructure often introduces dimensional variances, damaged edges, and misaligned seams.

Operating with industrial-grade digital machining capabilities, Stonhaus Design, a stone countertop fabricator in Charleston, SC, provides an integrated, single-source solution for natural and engineered stone surfaces. By controlling every production phase—from raw slab procurement and physical bundle inspection to 3D laser digitizing, 5-axis CNC waterjet cutting, and turnkey trade installation—the firm eliminates third-party markups and logistical handoff errors. This technical review examines the petrographic selection criteria, digital templating accuracy, CNC machining standards, edge joinery engineering, and on-site mounting methods deployed by Stonhaus Design, a stone countertop fabricator in Charleston, SC.

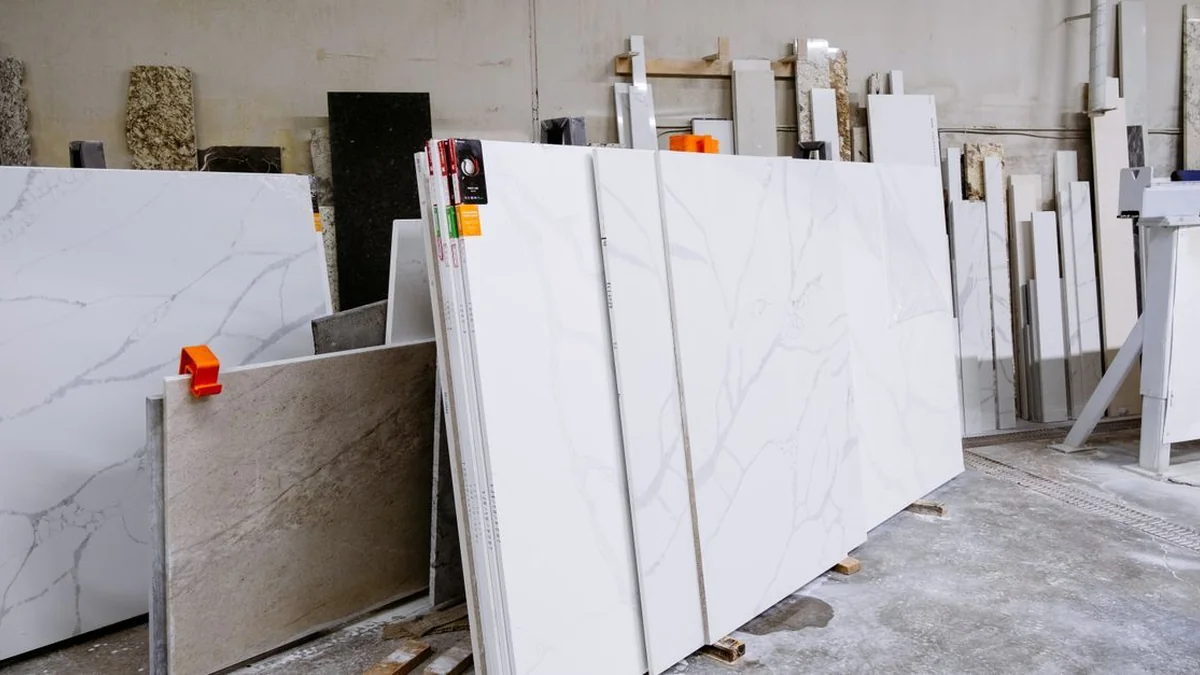

Direct Warehouse Slab Selection: Petrography and Bundle Integrity

The manufacturing workflow begins with material evaluation. Because natural stone develops through tectonic heat, sedimentation, and volcanic cooling over millions of years, physical slabs feature distinct variations in mineral hardness, crystal distribution, water absorption, and tensile strength.

+-----------------------------------------------------------------------------------------+
|                               PETROGRAPHIC EVALUATION MATRIX                            |
+--------------------------+-----------------------+------------------+-------------------+
| Stone Material           | Primary Mineral Base  | Mohs Hardness    | Absorption (ASTM) |
+--------------------------+-----------------------+------------------+-------------------+
| Plutonic Granite         | Quartz / K-Feldspar   | 6.0 to 6.5       | 0.15% to 0.40%   |
| Metamorphic Quartzite    | Recrystallized Quartz | 7.0 to 7.5       | 0.05% to 0.15%   |
| Calcitic Marble          | Calcium Carbonate     | 3.0 to 4.0       | 0.10% to 0.50%   |
| Engineered Quartz        | Quartz / Polymer Resin| 6.5 to 7.0       | < 0.05%          |
| Sintered Porcelain Compact| Sintered Clay/Feldspar| 7.0 to 8.0       | < 0.02% (Immune)  |
+--------------------------+-----------------------+------------------+-------------------+

In-Person Bundle Auditing vs. Digital Swatches

Sourcing natural stone exclusively through small digital photos or 4-inch square swatches introduces severe risks on multi-slab projects:

Sequential Slab Inspection: At the slab warehouse, natural stone is cataloged by quarry block and sequential slab numbers (e.g., Block 204, Slabs 01 through 24). Inspecting adjacent slabs in a bundle ensures matching background tones, crystal grain density, and uninterrupted vein movement across wide spans.
Structural Fissure Screening: Natural veins reflect metamorphic mineral variations, whereas structural fissures are physical fractures through the crystalline lattice. Fabricators audit slabs under 5000K daylight-spectrum lighting, utilizing cross-directional illumination and tactile checks to distinguish cosmetic natural veining from structural weaknesses.
Resin Infiltration Quality: Many natural granites and quartzites receive a factory-applied, vacuum-infused epoxy resin backing to stabilize micro-fissures during quarry sawing. Direct inspection confirms the resin layer is optically clear, smooth, and free of yellowing, cloudy spots, or pinholes.

Curated Inventory Platforms

The facility maintains an inventory spanning five distinct architectural platforms:

Metamorphic Quartzites: Premium Brazilian varieties (such as Taj Mahal, Sea Pearl, and Macaubas) composed of over 90% recrystallized silicon dioxide ( $SiO_2$ ), providing complete immunity to acid etching and high scratch resistance (Mohs 7.0+).
Plutonic Granites: Coarse-grained igneous rocks offering high compressive strength (exceeding 20,000 psi) and thermal resistance up to 400°F (204°C).
Calcitic and Dolomitic Marbles: Classic Italian varieties (Calacatta, Carrara, Statuario) prized for organic veining and soft, tactile finishes in luxury master baths and formal areas.
Engineered Quartz: High-density composite slabs combining 90% to 93% crushed quartz aggregates with polyester resins, delivering non-porous surfaces that require zero ongoing sealing.
Ultra-Compact Sintered Porcelains: High-pressure compacts fired above 1,200°C, offering complete UV stability for outdoor Lowcountry kitchens and heat immunity for commercial cooktops.

Digital Templating: Precision Photogrammetry and CAD Mapping

Custom stone fabrication requires millimeter-level accuracy at the jobsite. Manual methods using thin wood strips, corrugated plastic, or cardboard templates are susceptible to physical deflection, transport warping, and measurement drift across long spans.

       [ Tripod 3D Laser Site Templating ]
                        |
                        v
     [ Vector CAD Export (.DXF / .DWG) ]
                        |
                        v
  [ High-Resolution Calibrated Slab Photography ]
                        |
                        v
     [ Digital Nesting & Virtual Vein Matching ]
                        |
                        v
  [ Client 3D Photorealistic Render Sign-Off ]

Optical 3D Coordinate Capture (Laser Digitizing)

Technicians deploy tripod-mounted 3D laser digitizing stations (such as LT-2D3D systems) to capture real-world room dimensions:

Coordinate Measurement Accuracy: Digital laser scanners measure spatial data points with an accuracy of $\pm 0.5\text{ mm}$ across a 30-foot sweep.
Mapping Wall Bows and Irregular Angles: Residential drywall framing in the Lowcountry rarely forms true 90-degree right angles, frequently exhibiting natural settling bows and framing waviness. Digital lasers scan wall profiles at continuous micro-intervals, capturing every curve as vectorized splines in a .DXF CAD file.
Substrate Flatness Audits: The laser station records relative height differences across the entire cabinet plane. If a cabinet box sits low by more than 1/8 inch across its span, the software flags the defect, allowing the installation team to level the framing before stone fabrication begins.

Orthorectified Slab Digitization and Virtual Vein-Matching

Once the digital template is generated, it is linked with digital imagery of the client's stone slabs:

Orthorectified Photography: Slabs are positioned in a dedicated photography station equipped with balanced 5000K LED lighting. Overhead high-resolution cameras capture the slab's perimeter, surface veining, and natural inclusions without optical lens distortion.
CAD Nesting and Vein Alignment: Specialized software overlays the digital countertop cutouts directly onto the slab imagery. On stones with bold, directional veining, designers align dramatic vein lines across mitered seams, waterfall gables, and continuous backsplashes.
Client 3D Layout Review: The client, architect, and interior designer review a photorealistic 3D digital rendering of the finished project, confirming how every seam and vein will align before cutting begins.

Advanced Fabrication: 5-Axis CNC Waterjet and SawJet Technology

Transitioning digital CAD files into finished stone components requires computer-controlled machinery that cuts dense stone without transferring thermal or mechanical stress to the material.

+-------------------------------------------------------------------------+
|                  CNC SAWMONK MULTI-AXIS TOOLING STACK                   |
+-------------------------------------------------------------------------+
| [ Primary Slicing ]   -> 16" Diamond Bridge Saw (Water-Cooled Blade)    |
| [ Intricate Cutouts ] -> 60,000 PSI Waterjet with Garnet Abrasive       |
| [ Inner Radii & Edge] -> High-Speed Multi-Tool Water-Lubricated Spindle |
| [ Underside Grooves ] -> Diamond Router Bit (Steel Rod / SINK Inset)    |
+-------------------------------------------------------------------------+

Hybrid SawJet Mechanics: Diamond Saws and Abrasive Waterjets

The fabrication facility utilizes automated bridge saw-waterjet platforms:

Diamond Bridge Sawing: For straight perimeter cuts along kitchen islands and back edges, a 14-inch to 16-inch circular diamond-segmented blade operates at high RPM. Continuous high-volume water cooling prevents diamond segment delamination and washes away stone slurry.
60,000 PSI Abrasive Waterjet Stream: For tight inside 90-degree corners, undermount sink cutouts, cooktop drop-ins, and complex architectural curves, the system switches automatically to an abrasive waterjet nozzle. Pressurized to 50,000 to 60,000 psi, water is mixed with fine 80-mesh alluvial garnet abrasive, slicing through 3 cm dense quartzite smoothly without transferring mechanical impact shock to the stone.
Eliminating Blind Over-Cuts: Traditional circular saw blades inevitably leave blind over-cuts on the underside of sink openings due to blade curvature. The waterjet's narrow stream (roughly 0.035 to 0.045 inches in diameter) cuts internal corners cleanly without over-cutting, protecting the stone's structural strength around narrow sink rails.

Automated CNC Router Profiling and Wet Polishing

After cutting, stone pieces move to flat-bed CNC machining centers for edge profiling, sink bowl milling, and final polishing:

Multi-Stage Diamond Tooling: The automated CNC tool spindle cycles through sequential diamond-impregnated profiling wheels, progressing from coarse 50-grit metal-bond wheels down to 3,000-grit resin-bond polishing wheels.
Active Water Flow Cooling: High-volume water pumped through the center of the rotating tool spindle keeps polishing pads cool, prevents frictional thermal stress cracks in the stone, and flushes away abraded stone particles to prevent scratching.
Precision Sink Flange Milling: The CNC router mills out a recessed lip around undermount sink openings on the underside of the stone. This creates a secure, flush fit for undermount sink rims, eliminating silicone buildup along the rim.

Edge Profiling Options and Structural Joinery

Edge treatments define both the aesthetic style and the physical chip resistance of stone surfaces. Selecting an appropriate edge requires balancing architectural design with the stone's physical characteristics.

+-----------------------------------------------------------------------------------------+
|                                EDGE PROFILE PERFORMANCE MATRIX                          |
+--------------------------+-----------------------+------------------+-------------------+
| Profile Designation      | Cross-Section Radius  | Chip Resistance  | Architectural Use |
+--------------------------+-----------------------+------------------+-------------------+
| Eased / Flat Polish      | 1/8" to 3/16" Bevel   | High             | Modern / Minimal  |
| Demi-Bullnose            | Curved Top / Flat Base| Very High        | Transitional      |
| Full Bullnose            | Complete Semi-Circle  | Maximum (Smooth) | Traditional       |
| Ogee / Roman Classic     | S-Shaped Double Curve | Moderate to Low  | Formal / Ornate   |
| Mitered Drop Apron       | 45° Chamfered Joint   | High (Structural)| Bold Contemporary |
+--------------------------+-----------------------+------------------+-------------------+

Eased Profiles vs. Ornate Radii

Eased Profiles (1/8" to 3/16" Radius): The most popular transitional profile. Rounding the sharp top edge slightly relieves surface tension, preventing edge chipping from impacts with heavy pots or cast-iron cookware.
Complex Profiles (Ogee, Dupont, Cove): While visually striking in formal traditional homes, multi-curved profiles expose thin, delicate stone ridges that are more vulnerable to impact fractures along busy work surfaces.

                  [ 45-Degree Miter Joint Assembly ]
              +---------------------------------------+
              |                                       |
              |       Horizontal Top Slab Surface     |
              |                                  /|   |
              +---------------------------------+ |   |
                                                | |   |
                                                |/    |
                                                +-----+
                                                |     |  <-- Vertical Apron
                                                |     |      (Drop Edge)
                                                +-----+

Assembling Mitered Drop Aprons

To achieve the bold look of an ultra-thick 2-inch to 6-inch monolithic stone block without the excessive weight of a solid slab, fabricators craft precision mitered aprons:

45-Degree Diamond Chamfer Cutting: The horizontal countertop slab and the vertical drop apron are cut along their meeting edges at an exact 45-degree angle using specialized bridge-saw profiling blades.
Bookmatched Edge Continuity: Cutting the drop apron directly from the adjacent section of the same slab preserves continuous grain and veining, allowing patterns to flow seamlessly down the vertical face.
Epoxy Bonding and Structural Cleating: The mitered seam is bonded using structural, color-matched knife-grade vinyl-ester or epoxy adhesives. On deep miter drops, fabricators bond high-strength fiberglass mesh or stone backer blocks behind the inside seam corner, ensuring the joint withstands accidental impacts from barstools or kitchen equipment.

Turnkey Installation: Substrates, Leveling, and Structural Anchoring

Natural stone features exceptional compressive strength, but its tensile elasticity is low; it cannot flex or bend across an uneven plane without concentrating stress. The installation team at Stonhaus Design, a stone countertop fabricator in Charleston, SC executes strict jobsite preparation to prevent joint failure or cracked slabs.

+-------------------------------------------------------------------------+
|                  SUBSTRATE SUPPORT & CANTILEVER STACK                   |
+-------------------------------------------------------------------------+
| [ Top Surface ]    -> 3cm (1-1/4") Natural Stone or Quartz Slab         |
| [ Bonding Bed ]    -> Neutral-Curing 100% Silicone Adhesive Beads       |
| [ Support Cleats ] -> Inset Cold-Rolled Structural Steel Plates (1/2")  |
| [ Cabinet Base ]   -> Solid, Level Framing Box (L/720 Deflection Spec)  |
+-------------------------------------------------------------------------+

The L/720 Substrate Deflection Standard

Countertop installations must comply with Natural Stone Institute (NSI) engineering standards:

Deflection Thresholds: The supporting cabinetry and subfloor assembly must not deflect more than $L/720$ of the span under full dead and live design loads (where $L$ represents the span length between supports). Across a 10-foot span of base cabinets, vertical sag under full weight must remain under 1/6 of an inch ( $4.2\text{ mm}$ ).
Rigid Leveling Shims: Cabinets must sit level across their entire run, with maximum deviations not exceeding 1/8 inch across a 10-foot straightedge. Installers use high-density, non-compressible plastic shims beneath cabinet bases—avoiding soft wood shims that compress over time under heavy stone loads.

Cantilever Overhangs and Hidden Structural Steel Bracing

Deep island breakfast bars and cantilevered seating areas require dedicated structural reinforcement to prevent tipping or fracture when weight is placed on the edge:

The Rule of Thirds: At least two-thirds (2/3) of the stone slab's overall width must be supported directly by base cabinetry; no more than one-third (1/3) may extend unsupported as a cantilever.
Maximum Unsupported Spans: For standard 3 cm (1-1/4 inch) granite or quartzite, unsupported overhangs should never exceed 10 to 12 inches without reinforcement. Softer marbles are limited to 6 to 8 inches.
Flush-Mounted Structural Steel Brackets: For overhangs extending 10 to 18 inches, installers inset heavy-duty structural steel plates (typically 1/4-inch to 1/2-inch thick cold-rolled steel, 2.5 to 3 inches wide) flush into the top of the cabinet framing. Spaced roughly 18 to 24 inches on center, these hidden steel bars support the cantilevered stone without requiring knee-knocking vertical corbels or posts.

Seam Joining and Undermount Sink Cleating

Pneumatic Vacuum Seam Setters: Installers secure pneumatic vacuum cups (such as Gorilla Grip systems) to both sides of the seam. Integrated electric vacuum pumps pull the stone edges together tightly while micro-leveling thumbscrews adjust height differences, pulling the joint flush to produce seams narrower than 1/16 of an inch ( $1.5\text{ mm}$ ).
Undermount Sink Mechanical Anchoring: Sinks are supported mechanically from below using heavy-duty steel under-sink support rails secured directly into the cabinet walls, or threaded drop-in brass anchors set into the underside of the stone with stainless-steel sink clips. A continuous bead of neutral-cure 100% mildew-resistant silicone is applied between the sink rim and the polished stone cutout lip, creating a flexible, watertight seal.

Sealing Chemistry and Long-Term Surface Conservation

Natural stone surfaces require proper chemical sealing and non-destructive routine cleaning to protect against everyday liquid spills.

+-------------------------------------------------------------------------+
|                  ARCHITECTURAL STONE CARE: DO's AND DON'Ts              |
+-------------------------------------------------------------------------+
| [√] Clean surfaces with warm water and pH-neutral specialized soaps.   |
| [√] Blot spills immediately using soft, absorbent microfiber cloths.   |
| [X] Never use acidic cleansers, vinegar, citrus, or ammonia formulas.  |
| [X] Never cut directly on surfaces; always use dedicated cutting boards.|
| [X] Avoid setting blistering-hot cookware directly onto quartz resins.  |
+-------------------------------------------------------------------------+

The Chemistry of Penetrating Fluoropolymer Sealers

Natural stone sealers are divided into topical coatings and penetrating (impregnating) sealers:

Topical Sealers (Avoid): Acrylic or wax topical sealers create a plastic film over the surface. These wear down unevenly, turn cloudy in moist areas, and trap moisture beneath the coating.
Penetrating (Impregnating) Sealers: Professional maintenance relies on solvent- or waterborne fluorochemical penetrating sealers. These small fluoropolymer molecules penetrate deep into the stone's capillary pores, bonding chemically to the internal cell walls.
Altering Surface Tension: Impregnating sealers modify the surface energy of the stone without blocking breathability. Water, culinary oils, and staining liquids bead up on top of the slab rather than drawing into the pores, providing a generous window to blot spills clean.

Daily Cleaning and Chemical Restrictions

Recommended Daily Cleaning: Clean surfaces daily using clean warm water and a small amount of mild, pH-neutral dish soap or a dedicated stone cleaner, followed by a dry microfiber cloth.
Chemical Cleaners to Avoid: Never clean natural stone with acidic or caustic household cleaners, including vinegar, lemon juice, bleach, ammonia, or toilet bowl cleaners. On calcitic marbles, acidic solutions instantly dissolve calcium carbonate, etching the polished finish into a dull spot. On granites and quartzites, repeated contact with harsh cleaners breaks down the protective fluoropolymer sealer.

Frequently Asked Questions (FAQ)

What services are included with Stonhaus Design, a stone countertop fabricator in Charleston, SC?

The company provides turnkey stone manufacturing and installation services. This includes raw slab procurement, indoor bundle viewings, 3D laser jobsite templating, orthorectified slab photography, virtual vein matching, 5-axis CNC sawjet cutting, automated edge profiling, mitered drop edge fabrication, structural steel reinforcement, and on-site trade installation with penetrating fluoropolymer sealing.

What is the advantage of a 5-axis CNC waterjet over traditional bridge saws?

Traditional bridge saws rely exclusively on circular blades, which can deflect on dense quartzites and cannot cut inside 90-degree corners without leaving blind over-cuts on the slab underside. A 5-axis abrasive waterjet uses a cold, 60,000-psi garnet-infused water stream to cut intricate curves, tight sink corners, and cooktop drop-ins without thermal stress, micro-fracturing, or over-cuts.

Can homeowners preview how the stone veins will align before cutting?

Yes. Slabs are photographed in a calibrated lighting bay to capture surface veining and dimensions. Specialized CAD software nests the project's digital template over the high-resolution slab images, aligning veins across seams, backsplashes, and waterfall gables. Homeowners, builders, and designers review and approve a photorealistic 3D digital layout before cutting begins.

When are structural steel supports required for kitchen island overhangs?

Structural steel supports are required whenever a cantilever overhang exceeds 10 inches on 3 cm natural stone (or 6 inches on 2 cm stone). Overhangs must follow the standard "rule of thirds," where at least two-thirds of the slab's total depth is supported directly by base cabinetry. For deeper seating bars, 1/4-inch to 1/2-inch thick cold-rolled steel plates are routed flush into the cabinet framing, providing hidden strength without requiring knee-knocking corbels.

How often should natural granite and quartzite countertops be sealed?

Dense metamorphic quartzites and dark granites typically need sealing every 12 to 24 months, while lighter, more porous granites may require sealing every 6 to 12 months. Homeowners can test their seal by leaving a few tablespoons of water on the stone for 15 minutes; if the water beads up, the seal is intact. If it absorbs and leaves a dark spot, the countertop should be resealed with a penetrating fluoropolymer sealer.
